The Data-Driven Approach To High Value Floors
AXIOM PRO
Rolling floor profilograph system.
Collect the DATA
Get the ANSWERS
Bring the VALUE
A Universal Problem
Exponential Demand for Precision Concrete Floors
Logistics Optimization & Technological Advancements
Driving Exponential Demand for Precision Concrete Floors
With ever increasing expectations for same-day shipping, just-in-time manufacturing & processing, and robotics & automated systems; Precision Concrete Floors are in HIGH demand around the World!
Costly Floor Issues
Costly Issues
Poor Floor Quality
A number of standards exist around the world to ensure a floor’s surface does not impair operational-safety, productivity, asset-longevity and construct-ability.
Defined Traffic
DIN15185 EN15620
VDMA TR34 Fmin
Others
AutoStore® Specifications
Custom 3D-Mapping & Specs
Complex Specifications
Numerous standards & guides globally
Complex Specifications
With tight tolerances required over vast areas there is too often too much uncertainty and too much confusion over whether standards are met, or if there will be a problem with the concrete floor.
Is the floor…
Non-Compliant?
Will It Be An Issue?
If so… Where?
and By How Much?
Contesting Voices
A NEED FOR DATA-BASED ANSWERS!
A Universal Solution
The Axiom Pro surveys for compliance with all predominant defined traffic standards globally.
Fmin VDMA DIN15185 TR34 EN15620
- Industrial & Commercial
- Warehouse Space
- Distribution Centers
- Manufacturing
- Processing
- Industrial Space
Device
+
Compliance
Reporting
+
Grind
Reports
Satisfaction at all Levels
A PROVEN TRACK RECORD
Measure Floor Quality with the AXIOM PRO
Chassis Tilt
Cross Slope
Fmin Transverse Levelness
dZ [VDMA, DIN15185, TR34, EN15620]
Flatness
Tilt Rate of Change
Chassis-specific
Fmin Transverse Flatness
d²Z [TR34, EN15620]
Amplified for visibility
Chassis Pitch
Any Chassis Length
Both Travel Directions
Fmin Longitudinal Levelness
dX [TR34, EN15620]
Flatness
Pitch Rate of Change
Chassis-specific
Fmin Longitudinal Flatness
d²X [TR34, EN15620]
Amplified for visibility
Levelness
Z-Values
AutoStore Property B i,ii
Flatness
Fmin Wheel Path Flatness
Q-Values
1m, 2m, 3m, 4m Gauge Checks
[VDMA, DIN15185]
Fx [VDMA]
AutoStore Property A i,ii
Elevation Limits
Elevation Limits W.R.T Datum
Elevation Limits W.R.T Median
Elevation Limits W.R.T Mean
AutoStore Property C
Advanced Surfaces Combining Runs
3D Surface Contour Mapping
Custom Specifications
AND MUCH MORE
How Does it Work?
The Axiom Pro records data points from an array of sensors including inclinometers, encoders, and laser receivers to produce 3 high precision elevation profiles along the defined wheelpaths surveyed.
3x Dual-Axis Inclinometers
Sample Rate: 5.4Hz
Sample Size: 6k Sensor Readings
Bluetooth Connected
Data is collected onto a Bluetooth-connected smart device and then processed into compliance reports.
Adjustable Width
Telescoping Span
Carbon Fiber Tubes

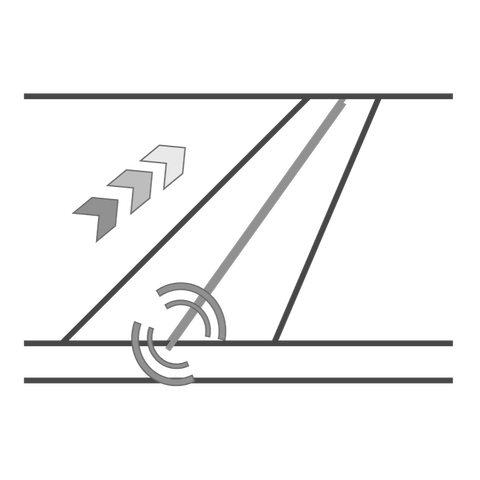

Laser-Guided
Axiom Pro precisely follows the pre-defined survey path.
3x Dual-Axis Inclinometers
Sample Rate: 5.4Hz
Sample Size: 6k Sensor Readings
2x Distance Encoders
Precision encoders record the location of readings along the survey path.
Compliance Reporting with the AXIOM PRO
Elevation Profiles In 3 Wheel Paths:
Compliance Reporting Is available for custom and OEM specific requirements derived from the high precision elevation profiles with high data- resolution.
Fmin:
Transverse Levelness & Flatness
Longitudinal Levelness & Flatness
Wheelpath Flatness (24" [300mm] Curvature)
Technical Report 34 Defined Movement:
dZ, dX, d²Z, d²X [DM1, DM2, DM3]
EN15620:
dZ, dX, d²Z, d²X [DM1, DM2, DM3]
VDMA:
dZ, 1m, 2m, 3m, 4m Gauge Checks
DIN15185:
dZ, 1m, 2m, 3m, 4m Gauge Checks
AutoStore Floor Requirements:
Property A i, Property A ii, Property B i, Property B ii, Property C
AND MORE
Floor Remediation with the AXIOM PRO
Optimized Grind Reports:
The Grind Reports, produced using the Axiom Pro, enable a Data-driven & controlled process to efficiently remediate a floor into compliance, accounting for ALL of the specification parameters simultaneously, with the minimum amount of Grinding; as opposed to the status-quo method to remedial grinding a floor into compliance, which is a guess-and-check approach that is time-consuming and wasteful with oftentimes questionable results.
Who is it for?
Anyone with a vested interest in ensuring optimal concrete floor quality.
Reporting produced with the Axiom Pro provides clients and floor owners with all of the information needed to ensure specification compliance. This is provided in a concise, data-rich, yet easy to interpret format.
